• Bustar Technical

    Information in these charts is approximate and is for informational purposes only

Mixing

Product Water Pouring Time Mixing Time How to Pour
22 pounds 45 Gallons Within 5 minutes 2 minutes Fill hole to top
55 pounds 2 Gallons Within 5 minutes 2 minutes Fill hole to top

Yield

Hole Diameter (inches) 1 12 1 58 1 34 1 78 2
Hole Depth per Bustar pound (ft) .77 .66 .56 .50 .41

Breaking Time

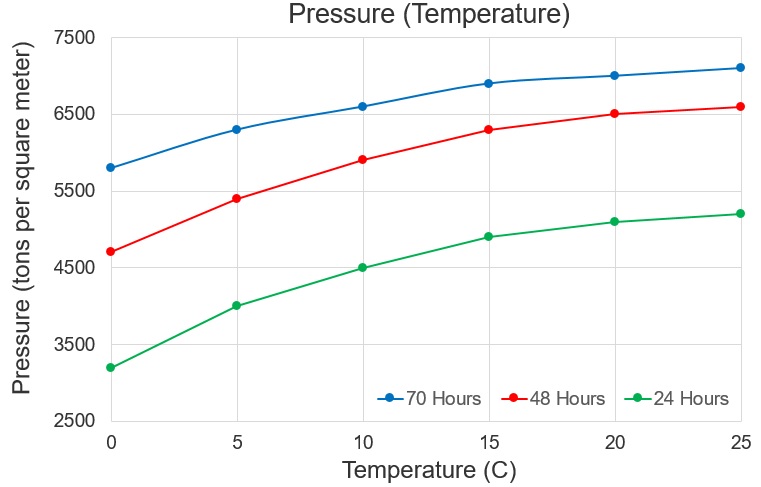

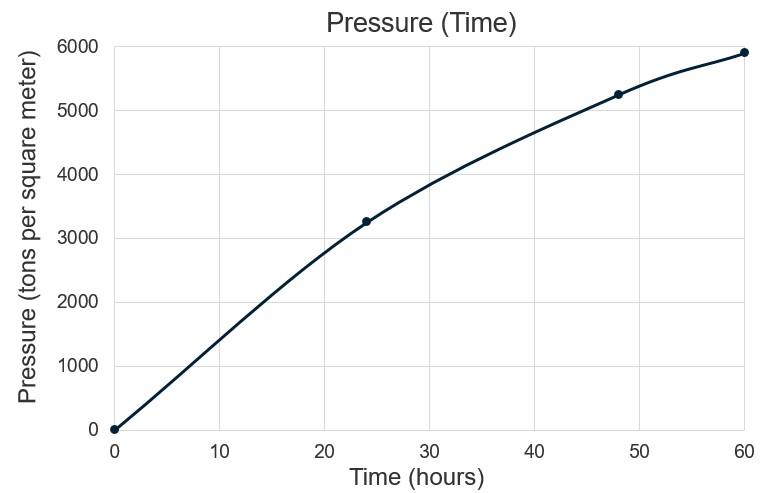

The expansive pressure of Bustar is progressive and proportional to the time elapsed since loading. Power increases as time passes. Although fragmentation takes place within 12 to 24 hours, the progressive action of Bustar expansive grout continues for four days in warm weather and eight days in cool weather, reaching a pressure of over 7000 T/m^2 (rock and concrete break at between 1500 and 3000 T/m^2). Note that core temperature, water temperature, or ambient conditions may effect cracking time.

Recommendations

  • Maximum spacing is 10 times the actual hole diameter.
  • Minimum recommended depth is 20 inches. Minimum hole depth is 12 inches.
  • Maximum recommended depth 19.5 feet. Maximum hole depth is 32.8 feet.
  • Hole depth must be always deeper than the distance between holes.
